APST-R1

APST-R1 is an AI lightweight intelligent terminal independently developed by the controllable cloud for the entire home energy management scenario. This product integrates multiple communication capabilities, is equipped with a tablet display, and has hardware reserved for LAN, RS485, DI, DO, USB, Type-C, PLC, CT, DRM, etc. rich physical interfaces. At the same time, it supports LoRa, WLAN, etc. wireless networking methods, as well as Ethernet, WiFi, 4G/5G etc. Internet access channels. As the core hardware carrier of the "home energy interconnection+" integrated scenario, the product is deeply adapted to household energy equipment such as photovoltaic, energy storage, charging piles, heat pumps, and underfloor heating, and can achieve unified networking, data intercommunication and collaborative interaction of various household energy devices. The device has extremely strong ecological compatibility and can seamlessly connect to mainstream smart home ecosystems such as Tuya, Xiaomi, and Midea, coordinate and manage smart sockets, lighting, curtains, and all household appliances, and build a full-scenario smart home energy ecosystem. Relying on the built-in AI intelligent algorithm, this terminal can complete intelligent scheduling of household electricity load, refined energy consumption control, VPP scheduling, and achieve cost reduction in users' home energy usage while comprehensively enhancing the intelligent and automated usage experience of the entire home.

product feature

Easy to use

(1) Installation is simple: rail-mounted installation;

(2) Configuration is simple: local setting (APP), remote setting;

(3) Maintenance is simple: remote maintenance, remote firmware OTA upgrade;

(4) Usage is simple: power on, connect to network, register and bind.


General

(1) Component selection: Industrial-grade components, capable of operating for a long time within the temperature range of -20℃ to +65℃;

(2) Communication stability: Real-time command monitoring, network disconnection detection, long-term operation detection;

(4) Data security: TLS-TCP connection, private protocol, data verification, data continuation transmission (storing data when the network is disconnected and continuing to transmit data when the network is restored).


Flexible

(1) Protocol Compatibility: Supports communication via multiple communication protocols;

(2) Local and Remote: When used with the APP, it enables both local monitoring and remote operation;

(3) On-site Parameter Configuration: When used with the APP, it allows for on-site reading and setting of device parameters.


product standard
CategoryProjectArguments
Common ParameterDimensions
(length/width/height)
(158*90*76mm)
Weight400g
User manual languageChinese, English
power supplyInput: 100V to 270V AC  Output: 12V DC
working current1000mA
power dissipation10W
CT current capacityCT 50~600A
sampling precision

Frequency: ±0.2%
Power factor: ±0.1
Current: ±0.5~1%
Voltage: ±0.5%
Power: ±0.5%  Energy: ±1%/IEC 61557-12 Class 1

Data update rate: RS485 - 50ms/PLC - 200ms/WiFi - 500ms/LoRa - 800ms

CT measurement grid supportSingle/Split/Three-phase
operating temperature-20℃ ~ +65℃
storage temperature-40℃ ~ +85℃
waterproofing gradeIP20
Temperature and humidity
level
≤ 95% relative humidity, no condensation
degree of pollution2
altitude<2000 m
shake10Hz~50Hz, IEC 60068-2-6
way to installDesktop / Wall-mounted
authentication certificateCE /UKCA/Rohs/EN18031/CRA
quality guarantee2 years (the hardware is designed for a lifespan of over 15 years)

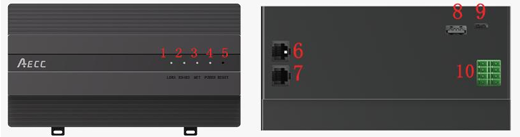

Serial numberDefinitionExplain
1LoRa-LEDLaoRa status indicator light
2485-LEDRS485 status indicator light
3NETNetwork status indicator light
4POWERpower light
5RESETReset/LoRa pairing button
6CT2Current transformer interface
7CT1Current transformer interface
8USB-2.04G interface
9Type-CBurn-in interface
10DODigital output (supporting active and passive)
11ACAC power input interface
12RJ451Ethernet interface 1
13RJ452Ethernet interface 2
14485RS485 communication interface
15DIDigital input (maximum voltage withstand 12V)
16AISimulated voltage and current input (0-10V / 4-20mA)
17SMA-NetWifi antenna interface
18SMA-NetLoRa antenna interface
